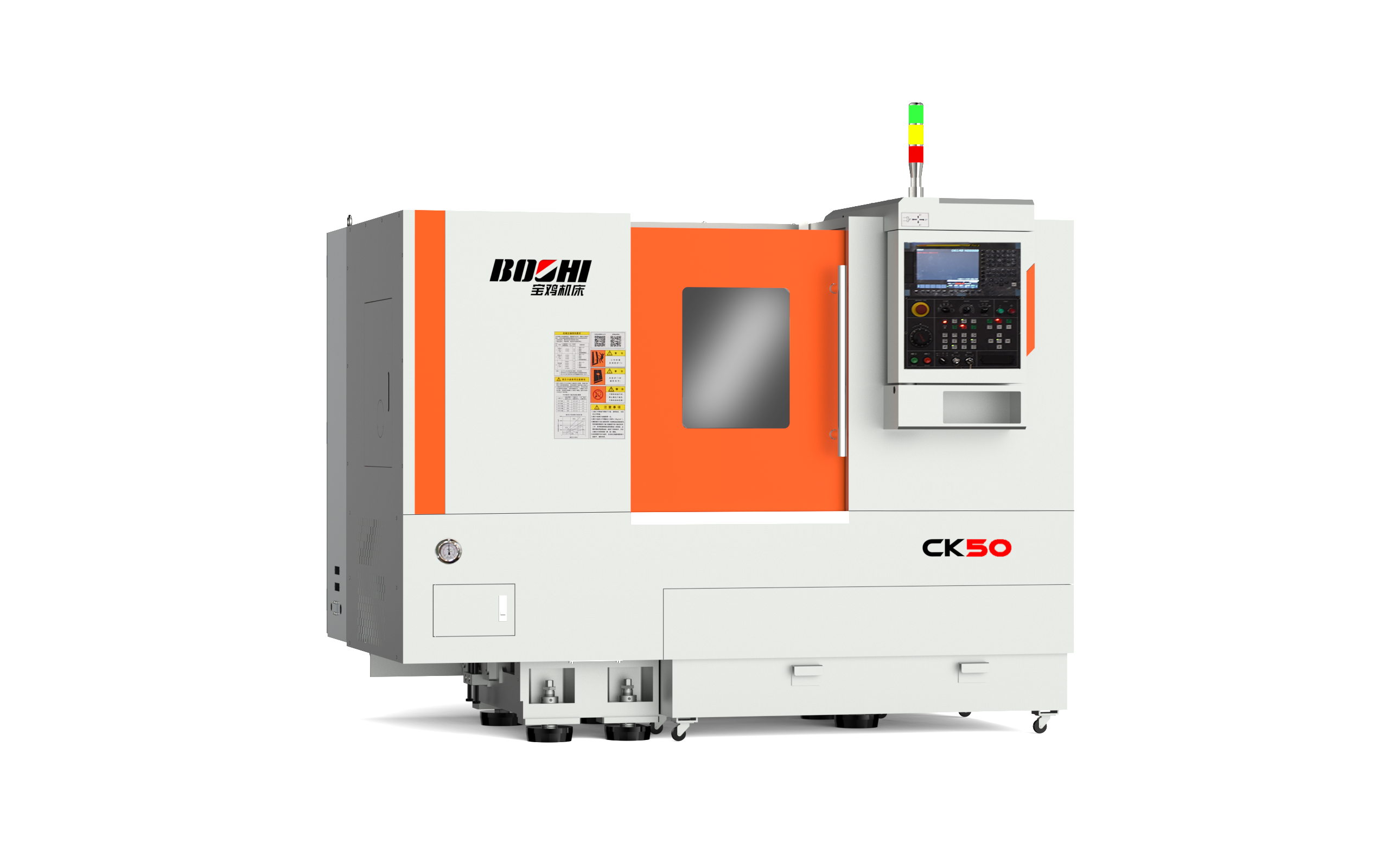

CK50(S) is a CNC lathe with wide rectangular hardened guide rails. Equipped with a cost-effective CNC system, domestic spindle motor and horizontal turret, it can perform turning operations such as various internal/external cylindrical surfaces, conical surfaces, arc curved surfaces, and metric/imperial threads. The machine tool achieves IT6 level machining accuracy, making it suitable for efficient and high-precision processing of rotating parts in general industries like automotive, petroleum, and construction machinery.
|
Capacity
|
Item |
unit |
CK50 |
CK50S |
|
Max.swing over bed |
mm |
Φ500 |
Φ500 |
|
|
Max.swing over slide |
mm |
Φ320 |
Φ320 |
|
|
Recommended turning diameter/length |
mm |
Φ200/500 |
Φ200/500 |
|
|
Max.turning diameter |
mm |
Φ370 |
Φ370 |
|
|
Max.bar diameter |
mm |
Φ51 |
Φ51 |
|
|
Spindle
|
Hydraulic chuck diameter |
mm |
Φ210 |
Φ210 |
|
Spindle nose |
|
A2-6（GB/T5900.1） |
A2-6（GB/T5900.1） |
|
|
Spindle taper |
|
1:20 |
1:20 |
|
|
Spindle thru-dia |
mm |
Φ62 |
Φ62 |
|
|
Spindle bearing (front/rear) |
mm |
Φ100/Φ90 |
Φ100/Φ90 |
|
|
Spindle speed |
r/min |
60—2250 |
60--2250 |
|
|
Spindle motor |
kW |
15 |
11(GSK CNC SYSTEM) |
|
|
Tailstock
|
Sleeve diameter/travel |
mm |
Φ90/100 |
Φ90/100 |
|
Standard center taper |
MT No. |
5 |
5 |
|
|
Saddle
|
Slant angle |
DEG |
45° |
45° |
|
X/Z Travel |
mm |
210/550 |
210/550 |
|
|
X/Z rapid traverse speed |
m/min |
12/16 |
12/16 |
|
|
X/Z axis servo motor torque |
Nm |
11/20 |
10/15 |
|
|
X/Z ball screw diameter |
mm |
Φ32/Φ40 |
Φ32/Φ40 |
|
|
Turret
|
Capacity |
|
8 or 12 |
8 or 12 |
|
Tool size (turning/boring) |
mm |
25×25/Φ40 |
25×25/Φ40 |
|
|
Other
|
Power |
kVA |
35 |
30 |
|
Dimensions (L×W×H) |
mm |
2920×1830×2020 |
2920×1830×2020 |
|
|
Total weight |
kg |
4500 |
4500 |
|
|
Max.weight of workpiece（clamped on two ends） |
kg |
550（8? chuck） |
550（8?chuck） |
